Mounting Plate

Description

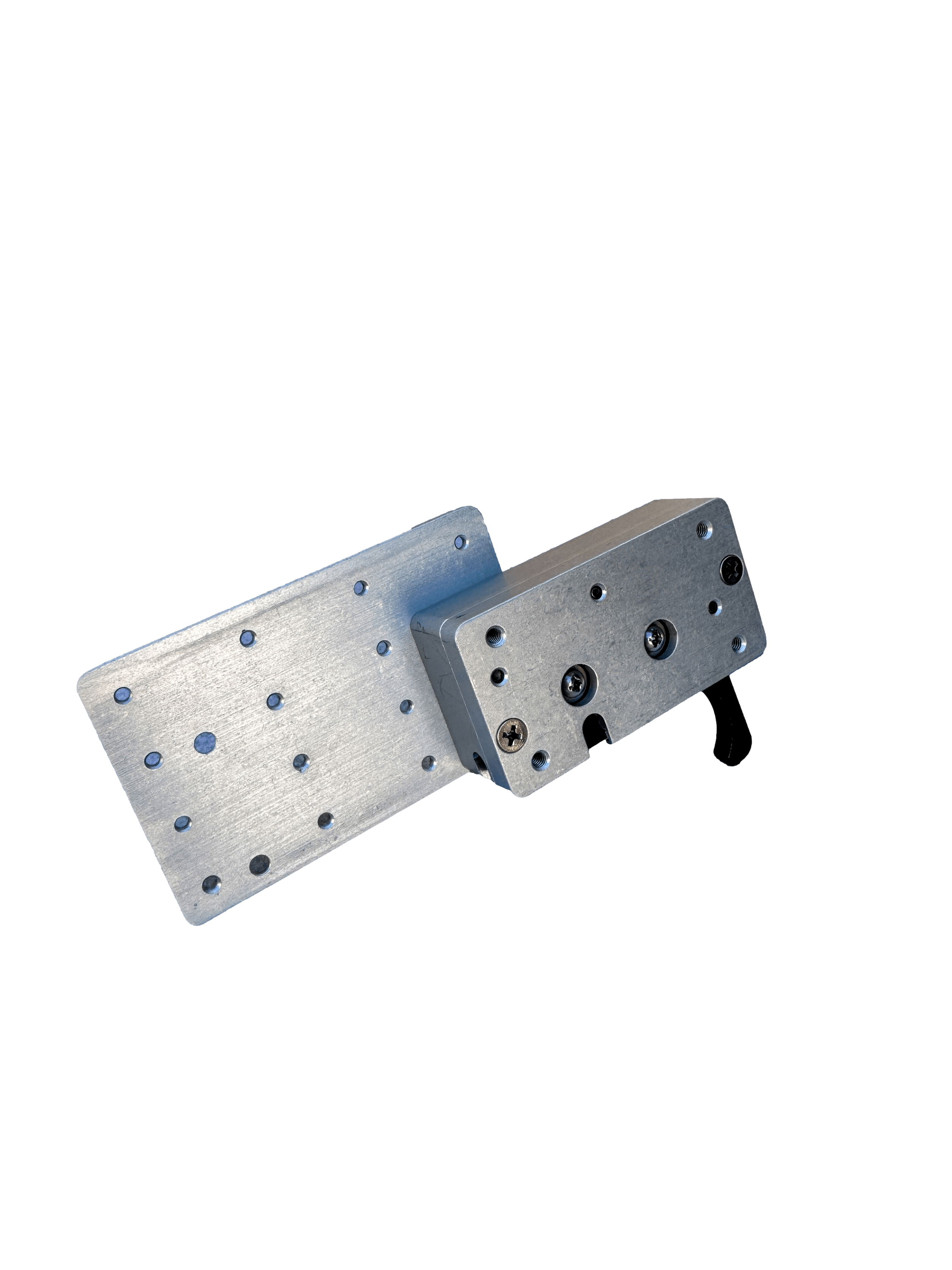

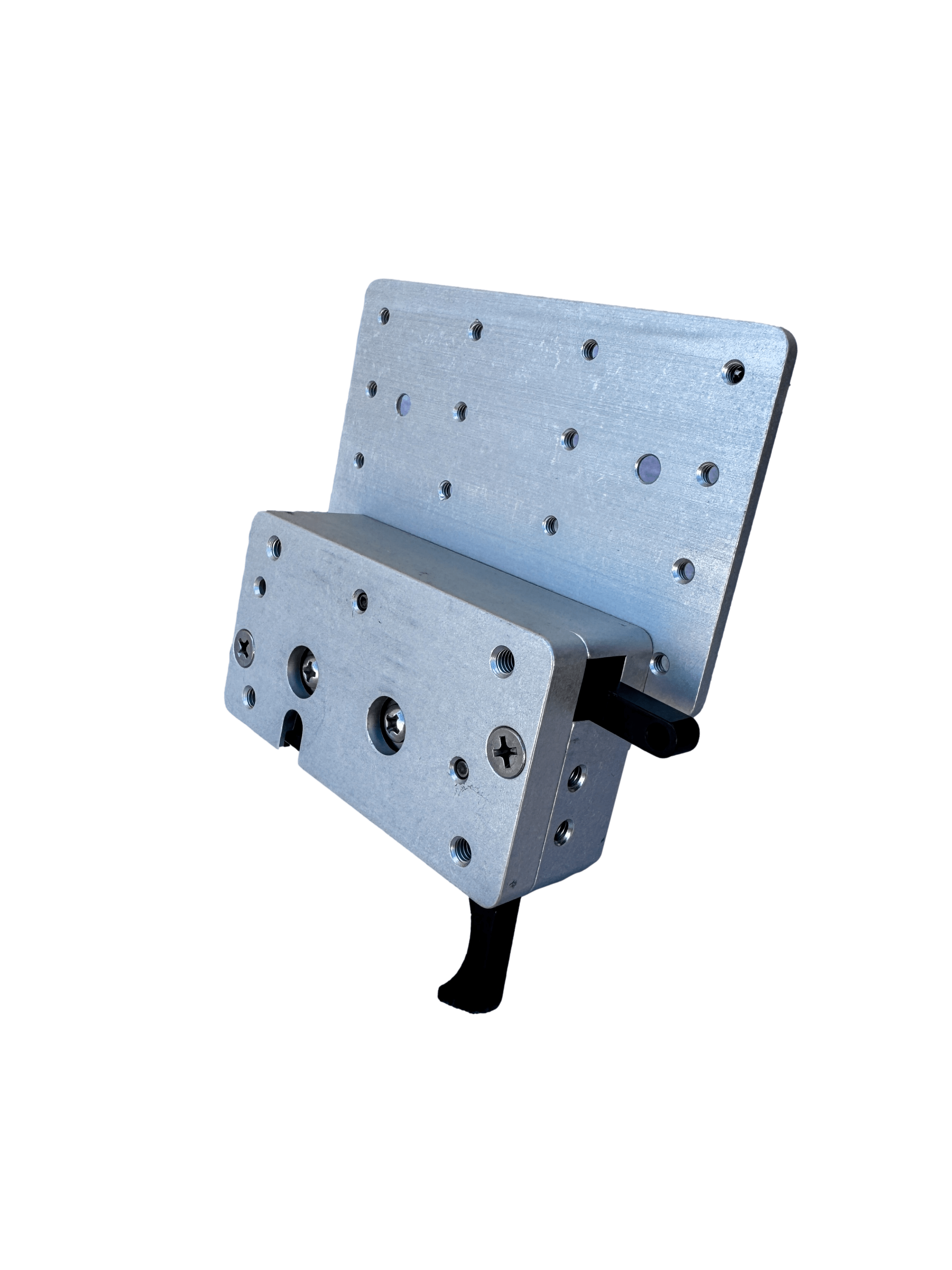

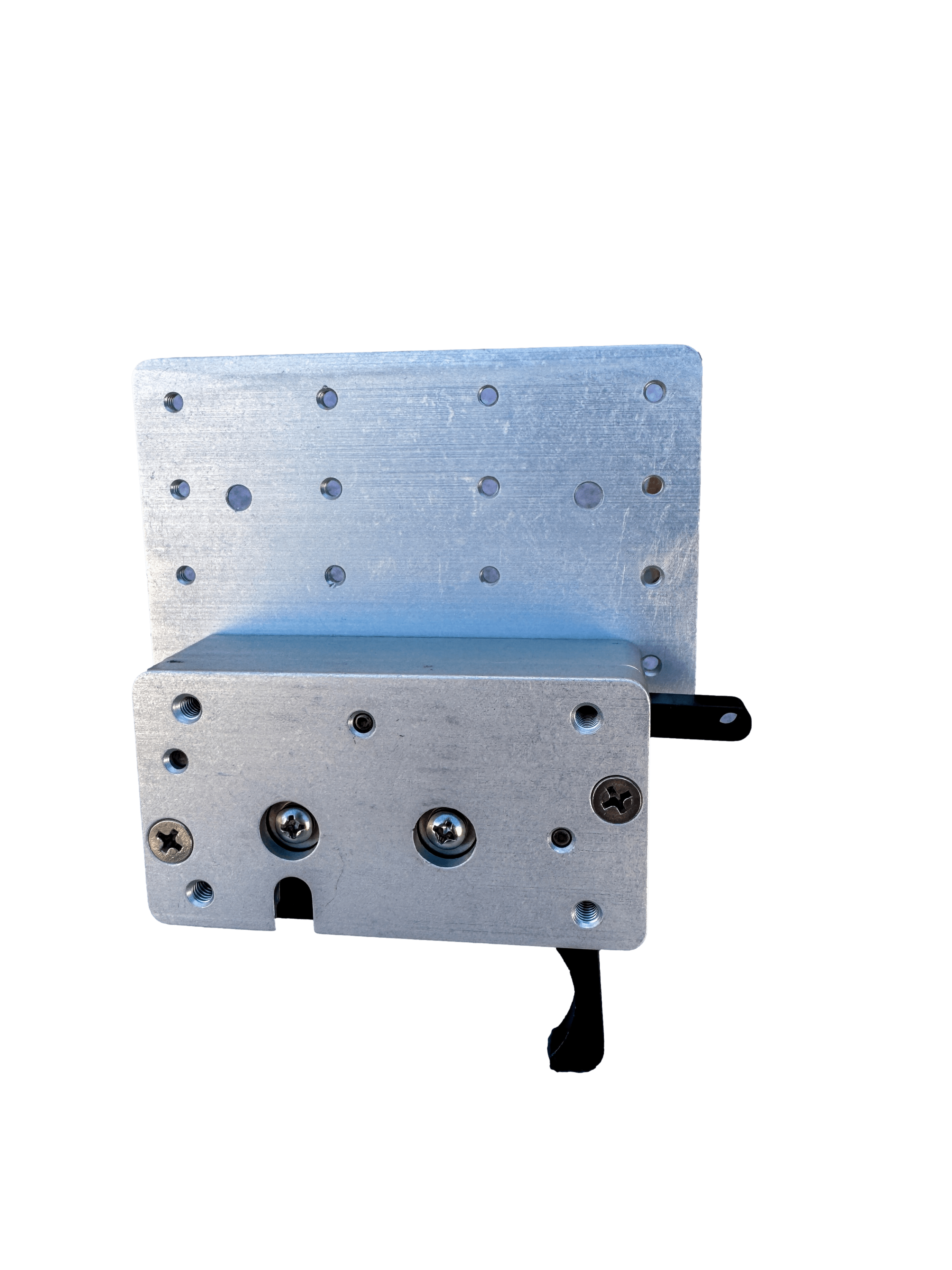

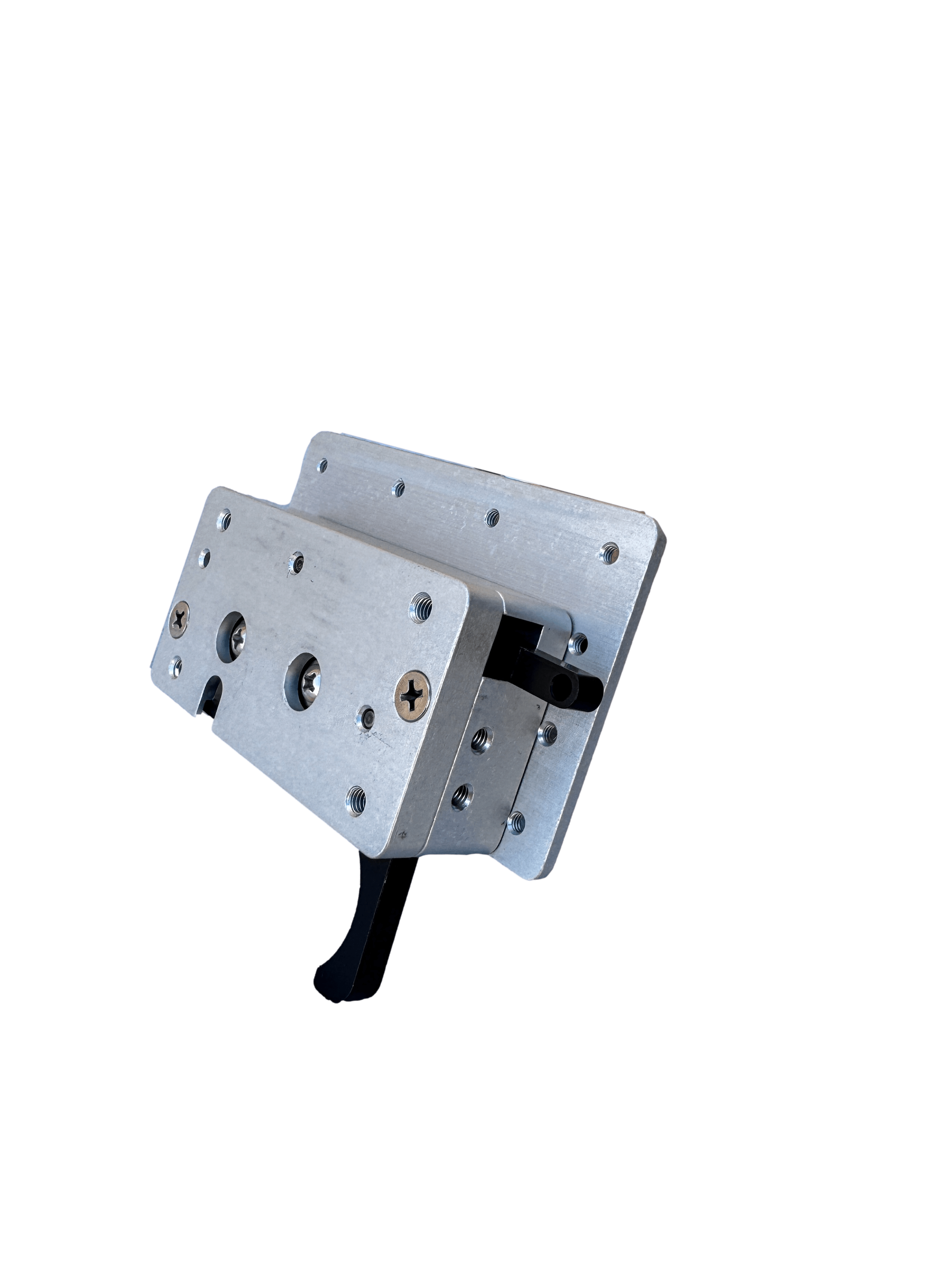

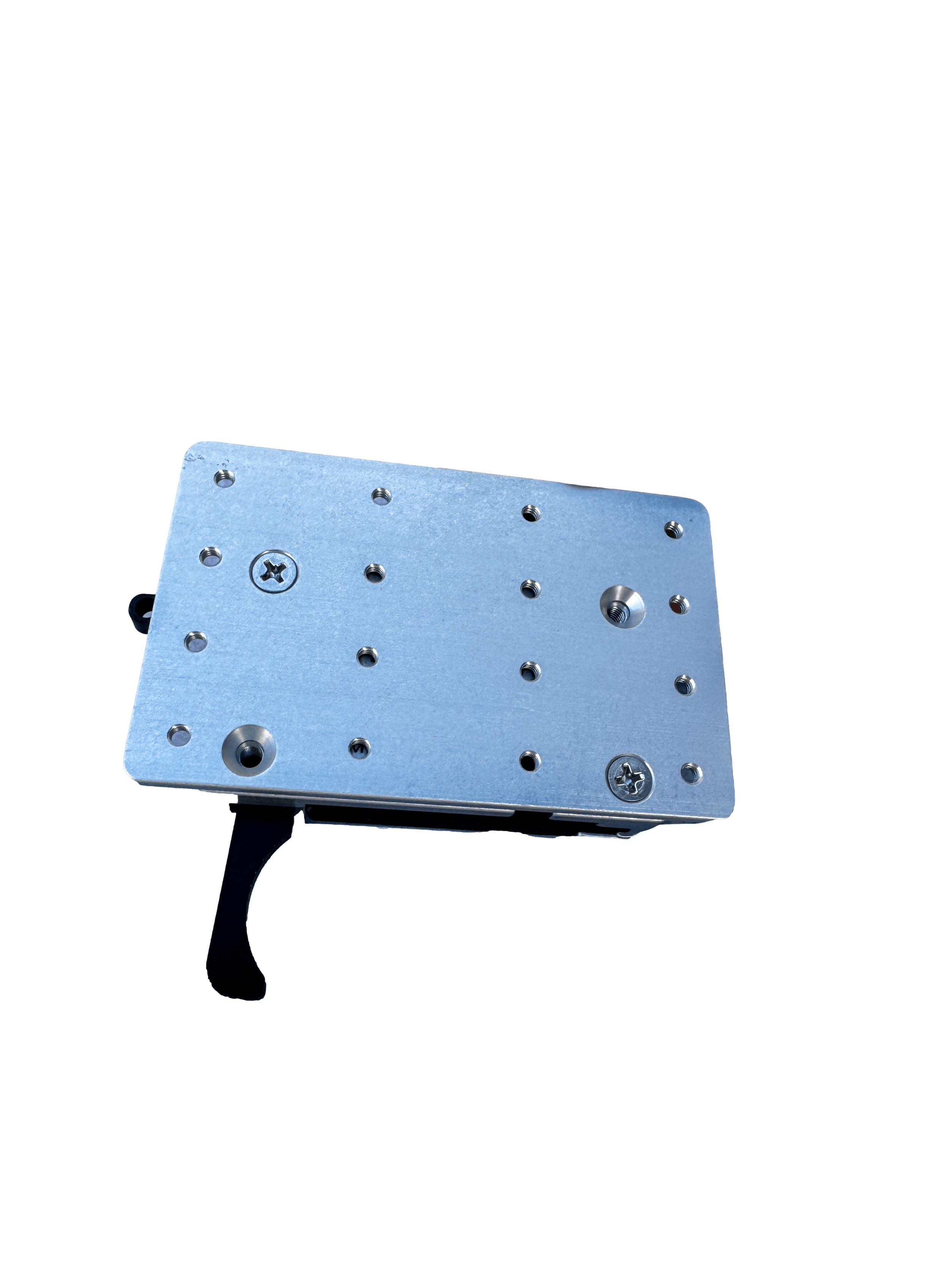

A plate is offered to assist in mounting the QuickDraw Drag Trigger in various positions.  You can also bend the plate and come up with your own angle that suits your needs.  The plate is made of 6061-T6511 aluminum and is 4.00 X 2.50 X 0.125 thick.  There are 4 holes that can attach it to either side of the QuickDraw trigger.  Qty 4 @ #8-32 UNC X 0.375 flathead screws are included to attach the plate to the trigger.  The other holes are #6-32 UNC threaded for use in attaching the plate to the vehicle.  These holes can also be drilled out for use with other fasteners.
